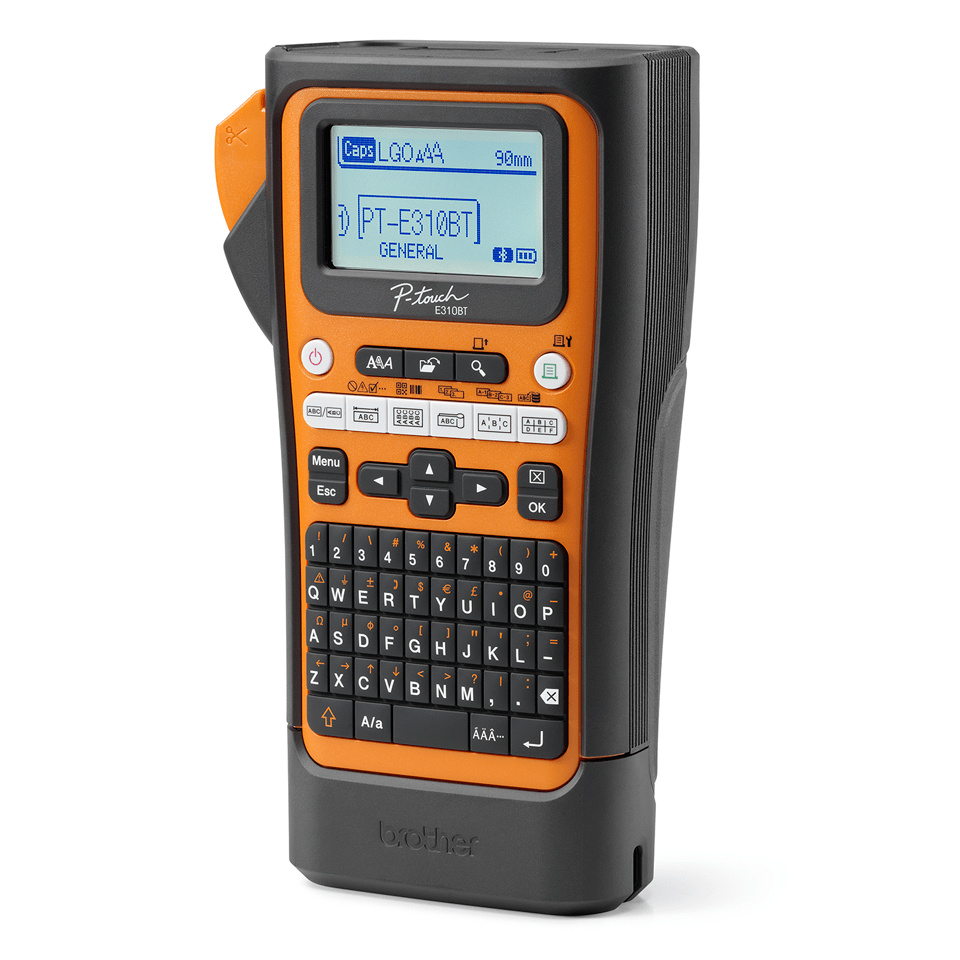

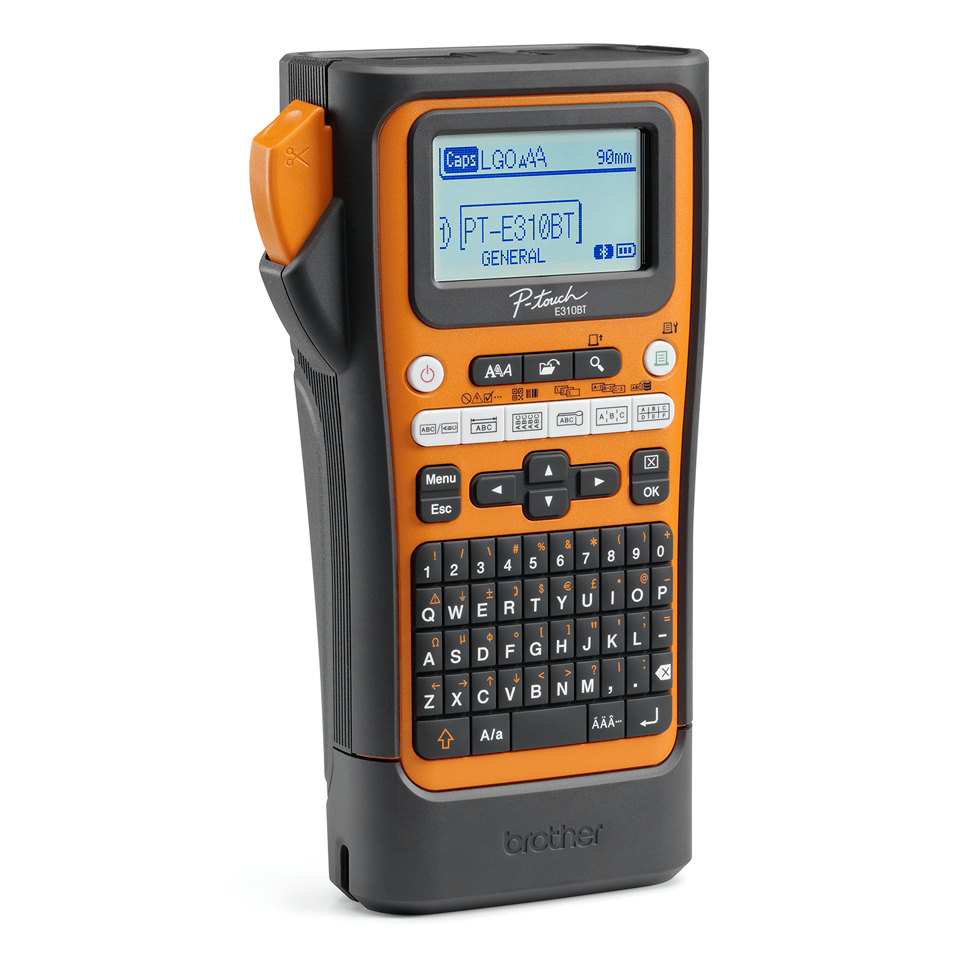

Professional Label Printer for Electricians and Network Installers
IDR 3.900.000
- Print up to 18mm TZe laminated tapes width
- QWERTY keyboard with Bluetooth® wireless connection
- Manual cut function
- Dedicated Function keys for Electrical and Datacom
- Comes with a hard carrying case
- Rechargeable Li-ion battery included
Informasi
Ikhtisar
Versatile Software and Mobile App with Bluetooth® Wireless Connection
Get the job done quickly on a mobile phone via a Bluetooth® wireless connection with the complimentary Pro Label Tool mobile app or P-touch Editor software on a laptop.

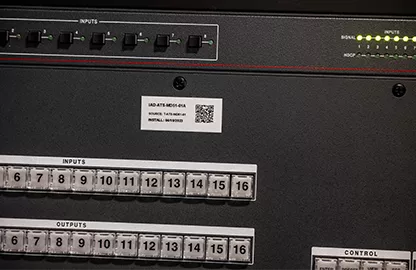

Enhanced 2D QR Code feature
Includes a new built-in 2D QR code feature in addition to the standard 1D barcode.

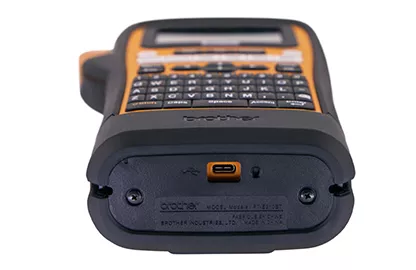

Convenient USB Type-C Charging function
The newly enhanced USB Type-C charging function provides convenient on-the-go charging without the hassle of carrying multiple chargers.
Efficient Cut-and-Pause Function to reduce label wastage
Print up to 20mm per second with a built-in industrial-strength cutter that features a cut-and-pause function to reduce label wastage.
Serialisation and Advanced Serialisation
Use the Serialisation function for incremental numbering or lettering in multiple quantities.
The Advanced Serialisation function also allows the increment of two different character ranges sequentially.

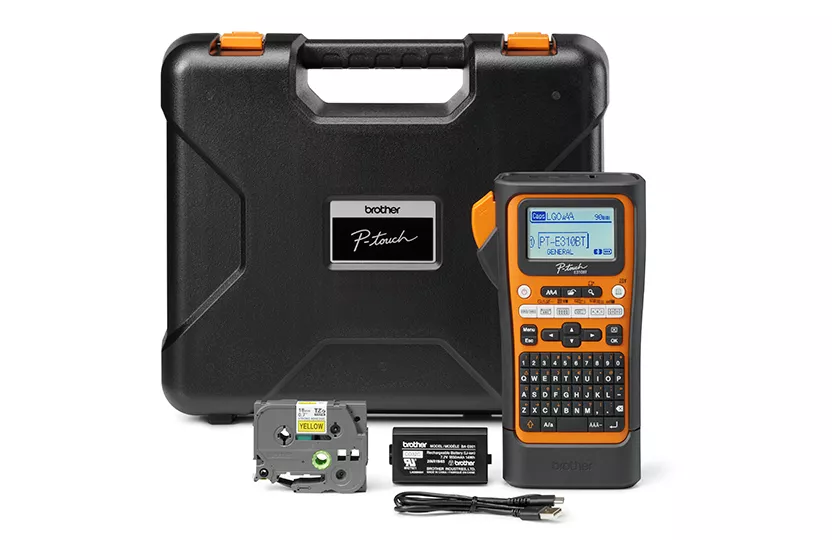

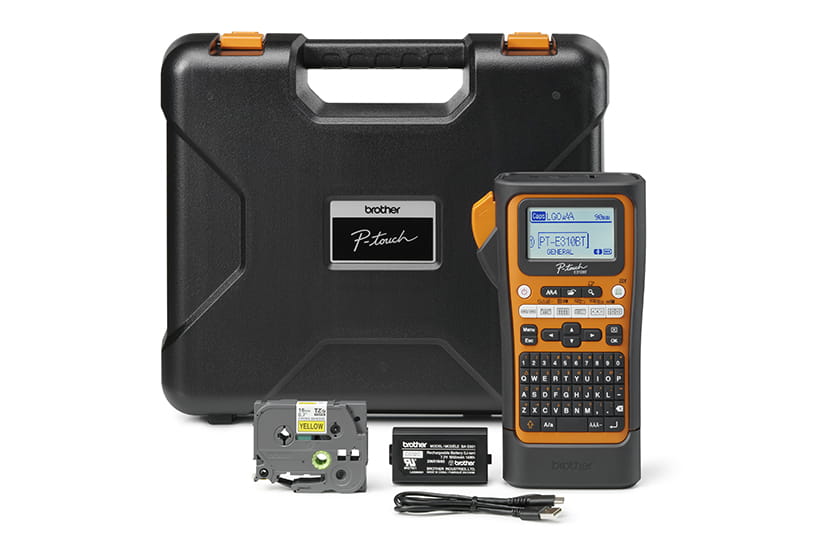

A completed Package to bring conveniently to job site
Comes with a rechargeable Li-ion battery, tape, and USB Type-C cable, all housed in a hard carrying case for easy transport to any job sites.
A variety of Consumables
Print on durable TZe laminated tapes in various colour and widths:
- Standard tapes: 3.5mm, 6mm, 9mm, 12mm, 18mm
- Flexible ID tapes: 6mm, 9mm, 12mm, 18mm
- Strong Adhesive tapes: 6mm, 9mm, 12mm, 18mm

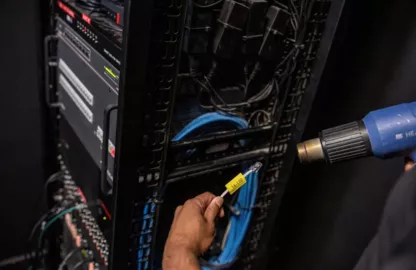

Print on Heat Shrink tube (HSe) widths (Shrink ratio: 3:1):
- 5.2mm, 9.0mm, 11.2mm

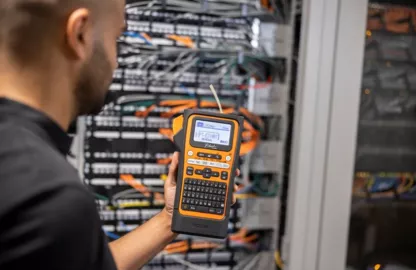

Backlit Graphical LCD
Large backlit graphic LCD enables industrial labelling even in dimly lighted job sites.

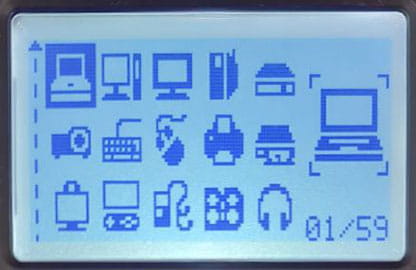

Built-in industrial Symbols
Includes a wide selection of built-in symbols, such as electrical, datacom, audio-visual, security, and safety symbols for any installation job.
Spesifikasi
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 3 lines
(128 x 56 dots)
Media Type
TZe, HGe, HSe (Heat-shrink Tube)
Available Tape Widths
TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm
HGe: 6mm, 9mm, 12mm, 18mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm
Dimensi Produk (Lebar X Kedalaman X Tinggi)
135 mm × 235.5 mm × 70.3 mm
Berat
0.785 kg
KecepatanCetak
Using USB-PD Adapter: Up to 20mm/sec, Using Battery: Up to 20mm/sec
Spesifikasi-Cetak
Resolution
180 dpi / 112 dot
No. Of Printable Lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 3 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line
Number of Characters
684 characters
Number of Symbols
476
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Datamatrix
※ GS1 QR codes will be transferred as micro QR codes.
1D barcodes only for transferred templates:
1. ISBN-2
2. POSTNET
3. Laser Bar Code
4. GS1 Databar (RSS)
5. Inteligent Mail Barcode
2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec code
4. GS1 Composite
Numbering
Yes (1 - 99)
Connectivity
Connectivity
USB version 2.0 (Full Speed), Bluetooth® Dual-Mode
Media
Maximum Tape Width
Up to 18mm
Printing Width
Up to 15.8mm
Functions
Cutter
Manual
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Up to 99 files
Memory Buffer Size
Up to 1800 characters
Power
Power Source
Rechargeable Li-ion Battery (BA-E001)
Optional: USB-PD Adapter for USB Type-C (PA-AD-004)
Auto Power-Off
Li-ion Battery (BA-E001): 20 minutes
USB-PD Adapter for USB Type-C (PA-AD-004): 20 minutes
