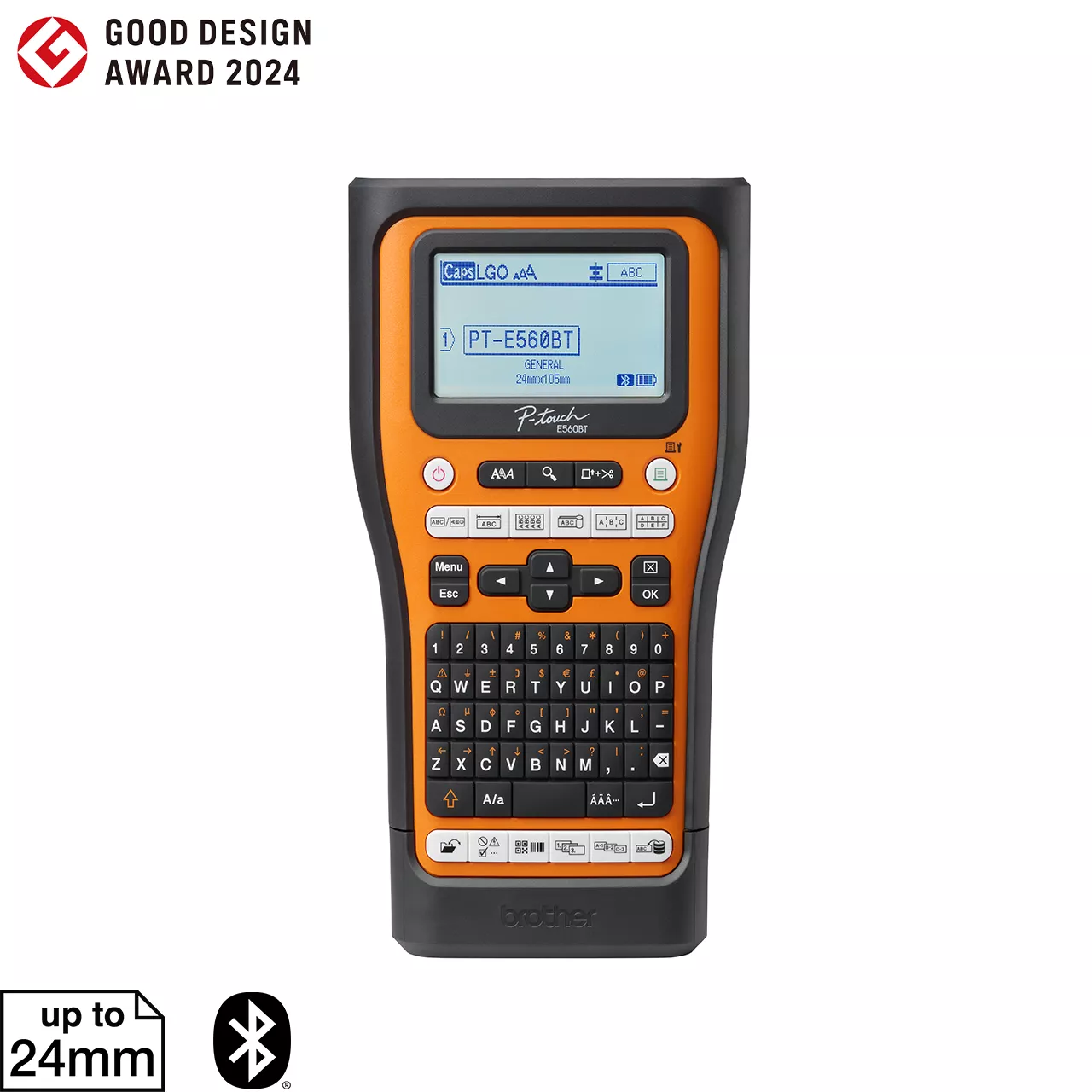

PT-E560BTVP Printer Label Industri

Lokasi pembelian
PRODUK TERBARU
PRODUK TERBARU
PRODUK TERBARU

Solusi Labeling Premium untuk Pekerjaan Lapangan Profesional

IDR 6.390.000
  • Print up to 24mm TZe laminated tapes width
  • QWERTY keyboard with
    Bluetooth® wireless connection
  • Auto and Half cut function
  • Dedicated Function keys for Electrical and Datacom
  • Comes with a hard carrying case
  • Rechargeable Li-ion battery included

Belanja Sekarang di Brother Official Store:

Tokopedia Shopee

Informasi

Ikhtisar

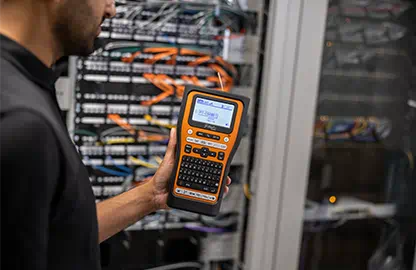

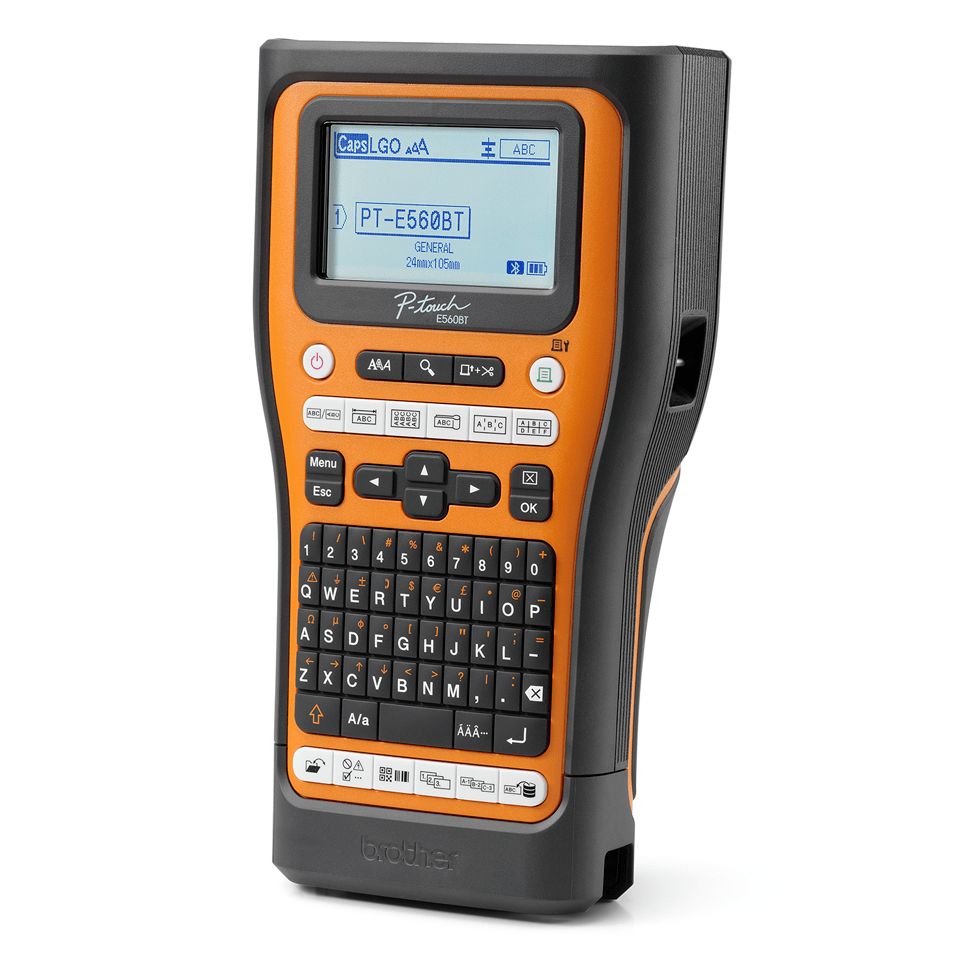

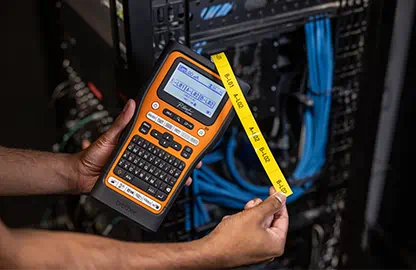

Professional Label Printer for Electricians and Network Installers

Gear up for efficiency with the feature-packed PT-E560BTVP Pro Label Printer, designed for electricians and network installers, offering a professional labelling solution for electrical and data communications installations.

Equipped with industry-specific one-touch keys, durable labels for faceplates, cable flags, cable wraps, punch-down blocks and patch panels, labels can be created efficiently on-site for cables, conduits, switches and sockets.

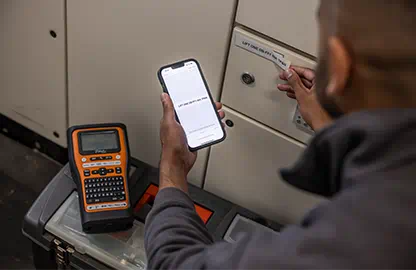

Versatile Software and Mobile App with Bluetooth® wireless connection

Get the job done quickly on a mobile phone via a Bluetooth® wireless connection with the complimentary Pro Label Tool mobile app or P-touch Editor software on a laptop.

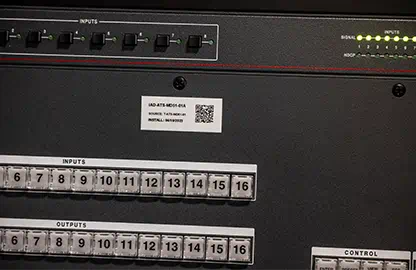

Enhanced 2D QR Code feature

Includes a new built-in 2D QR code feature in addition to the standard 1D barcode.

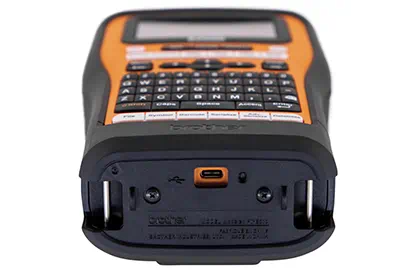

Convenient USB Type-C Charging function

The newly enhanced USB Type-C charging function provides convenient on-the-go charging without the hassle of carrying multiple chargers.

Automatic Full and Half cutter

Prints up to 30mm per second fast print speed with automatic full and half cutter and an easy-peel function for printing multiple labels in one continuous strip.

Serialisation and Advanced Serialisation

Use the Serialisation function for incremental numbering or lettering in multiple quantities.

The Advanced Serialisation function also allows the increment of two different character ranges sequentially.

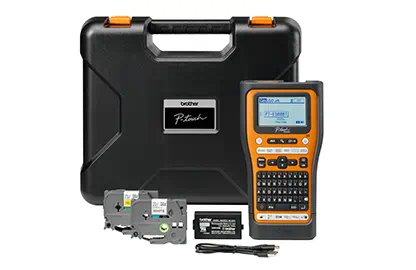

A completed Package to bring conveniently to job site

Comes with a rechargeable Li-ion battery, tape and USB Type-C cable, all housed in a hard carrying case for easy transport to any job sites.

A variety of Consumables

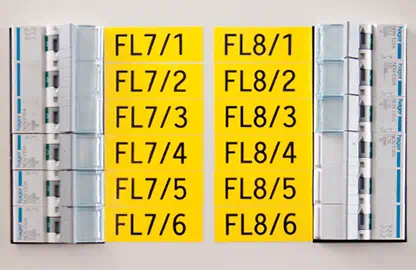

Print on durable TZe laminated tapes in various colour and widths:

  • Standard tapes: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
  • Flexible ID tapes: 6mm, 9mm, 12mm, 18mm, 24mm
  • Strong Adhesive tapes: 6mm, 9mm, 12mm, 18mm, 24mm
  • Self-laminating tapes: 24mm

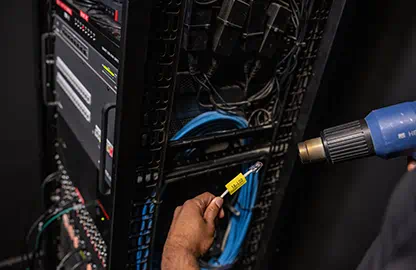

Print on Heat Shrink tube (HSe) widths (Shrink ratio: 3:1):

  • 5.2mm, 9.0mm, 11.2mm, 21.0mm

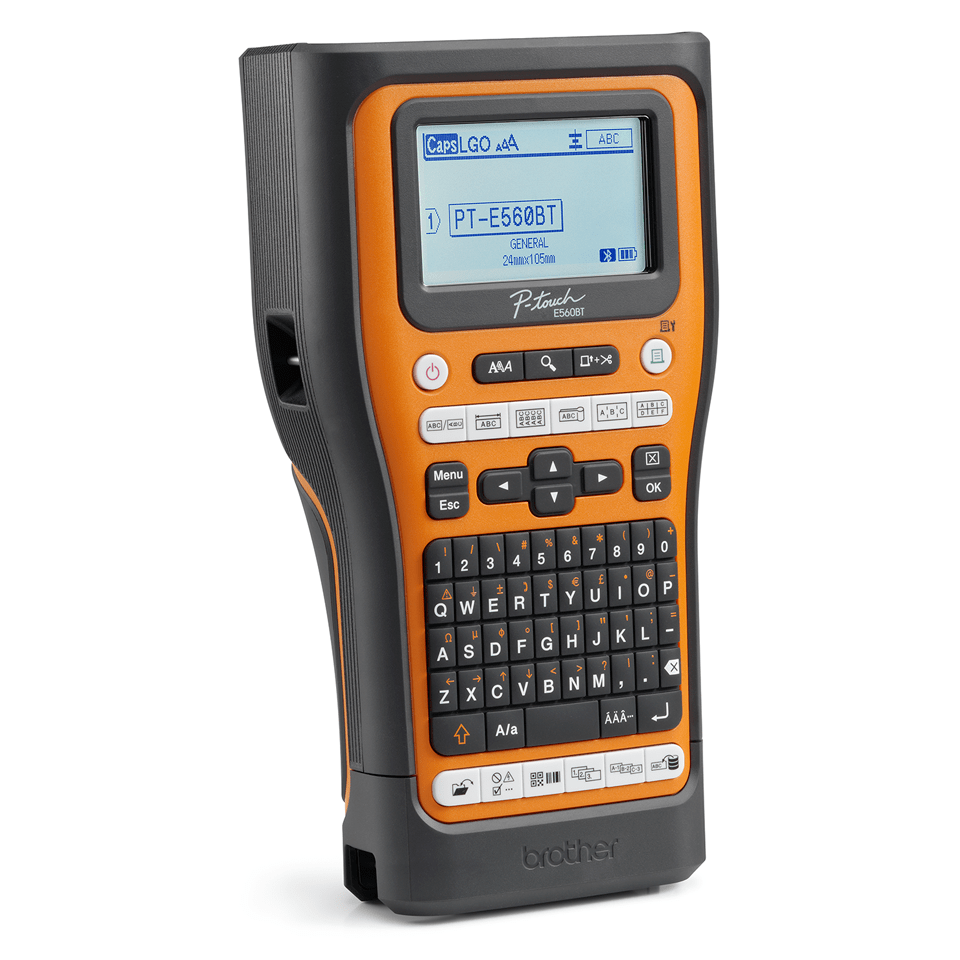

Backlit Graphical LCD

Large backlit graphic LCD enables industrial labelling even in dimly lighted job sites.

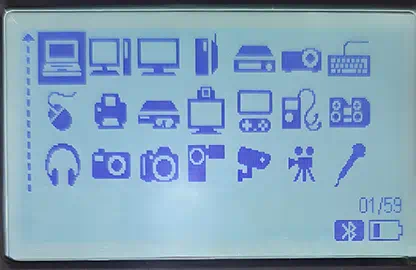

Built-in industrial Symbols

Includes a wide selection of built-in symbols, such as electrical, datacom, audio-visual, security and safety symbols for any installation job.

Spesifikasi

Bacic Specs

Keyboard

QWERTY

Display Type

18 characters x 3 lines
(240 x 120 dots)

Media Type

TZe, HGe, HSe (Heat-shrink Tube)

Available Tape Widths

TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
TZe-SL: 24mm
HGe: 6mm, 9mm, 12mm, 18mm, 24mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm

Dimensi Produk (Lebar X Kedalaman X Tinggi)

132 mm × 244 mm × 80 mm

Berat

1.05 kg

Print Speed

Using USB-PD Adapter: Up to 30mm/sec, Using Battery: Up to 20mm/sec

Print

Resolution

180 dpi / 128 dot

No. Of Printable Lines

24 mm tape: 1 - 7 lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line

Number of Characters

684 characters

Number of Symbols

476

Barcode

1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Datamatrix
     ※ GS1 QR codes will be transferred as micro QR codes.

1D barcodes only for transferred templates:
1. ISBN-2
2. POSTNET
3. Laser Bar Code
4. GS1 Databar (RSS)
5. Inteligent Mail Barcode

2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec code
4. GS1 Composite

Numbering

Yes (1 - 99)

Connectivity

Connectivity

USB 2.0 Full Speed, Bluetooth® Dual-Mode (Classic + LE)

Media

Maximum Tape Width

Up to 24mm

Printing Width

Up to 18.0mm

Functions

Cutter

Auto Full and Half

Multi Block Printing

Yes

Copy Printing

Yes

Mirror Printing

Yes

Preview

Yes

Memory

File Storage

Up to 99 files

Memory Buffer Size

Up to 1800 characters

Power

Power Source

Rechargeable Li-ion Battery (BA-E001)
Optional: USB-PD Adapter for USB Type-C (PA-AD-004)

Auto Power-Off

Li-ion Battery (BA-E001): 20 minutes
USB-PD Adapter for USB Type-C (PA-AD-004): 30 minutes
