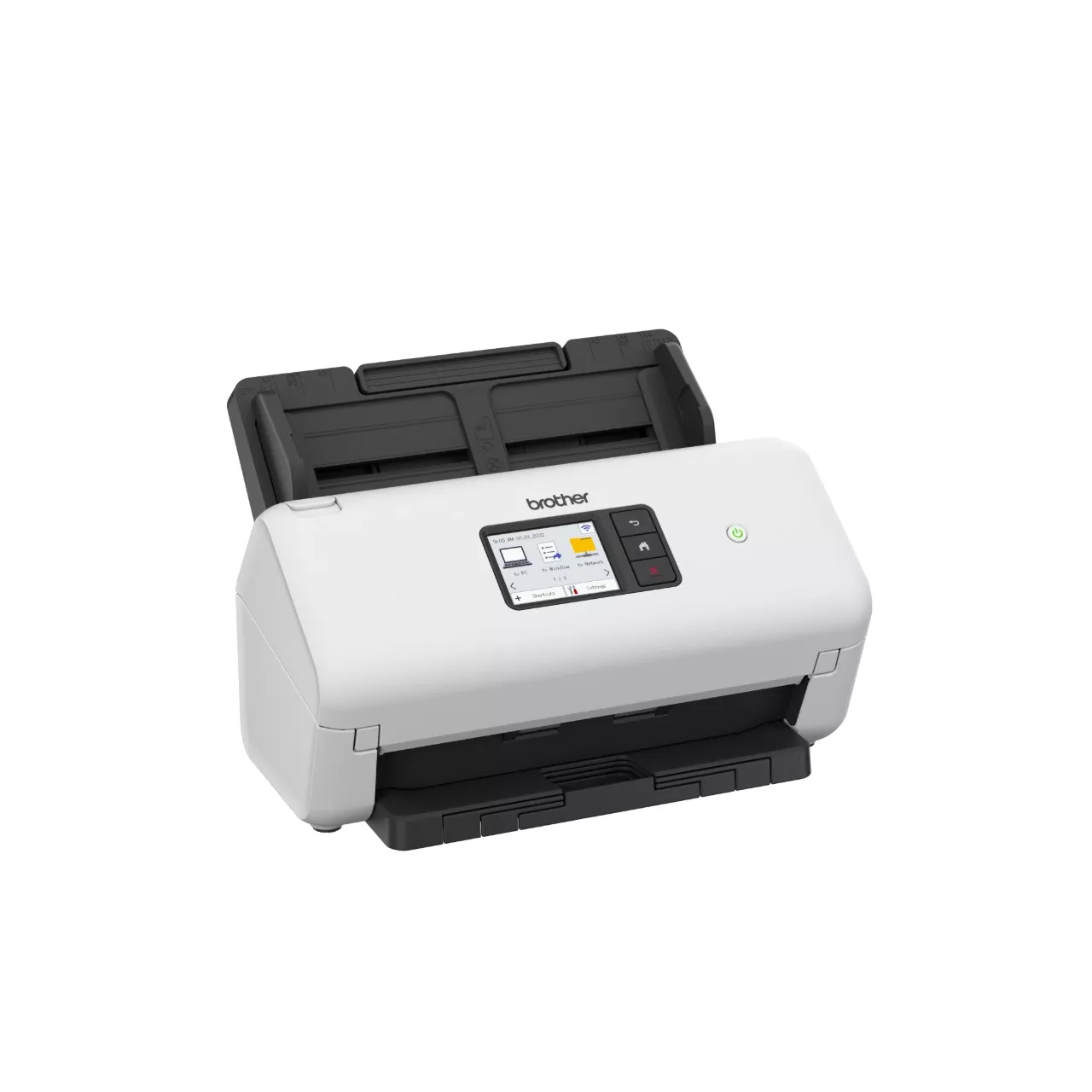

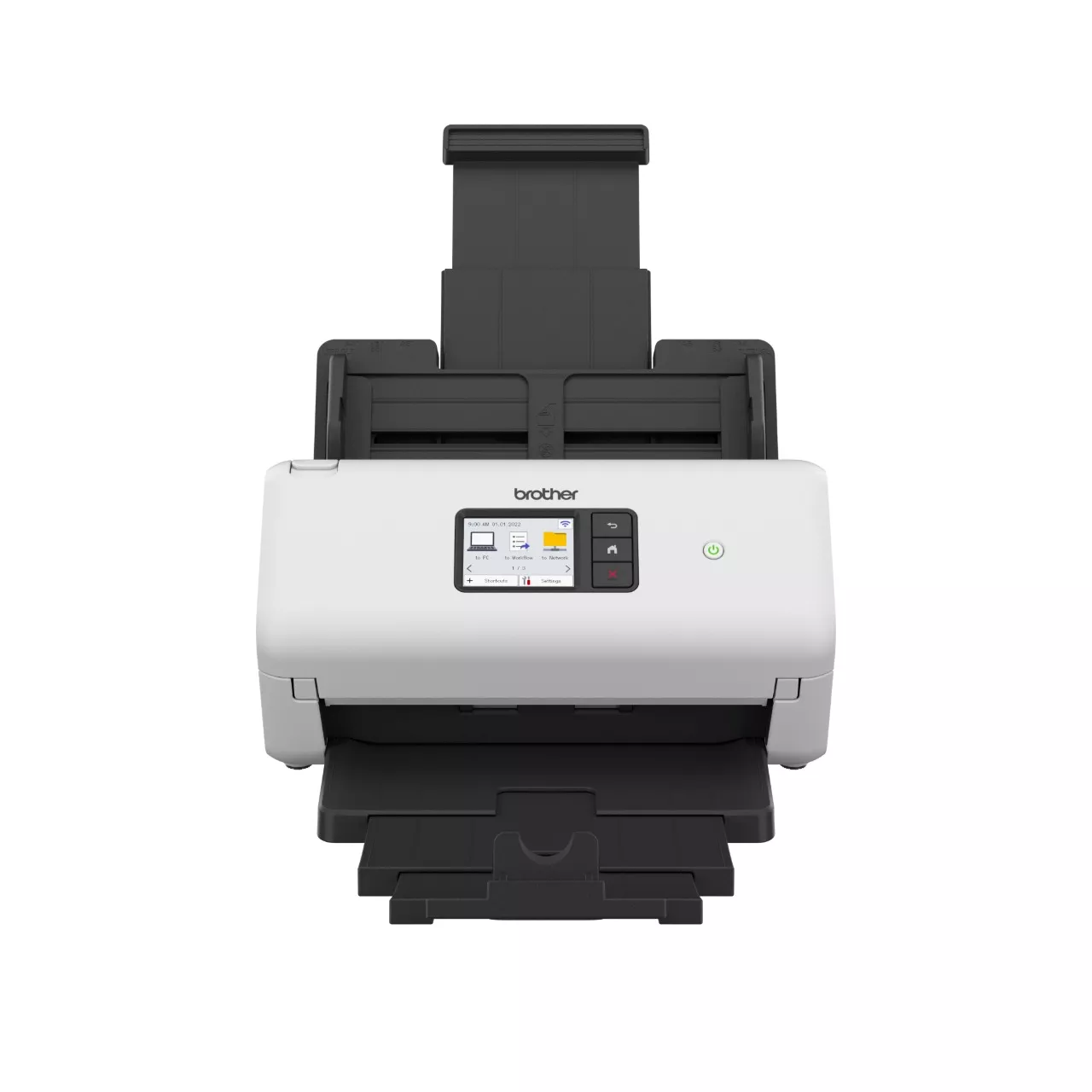

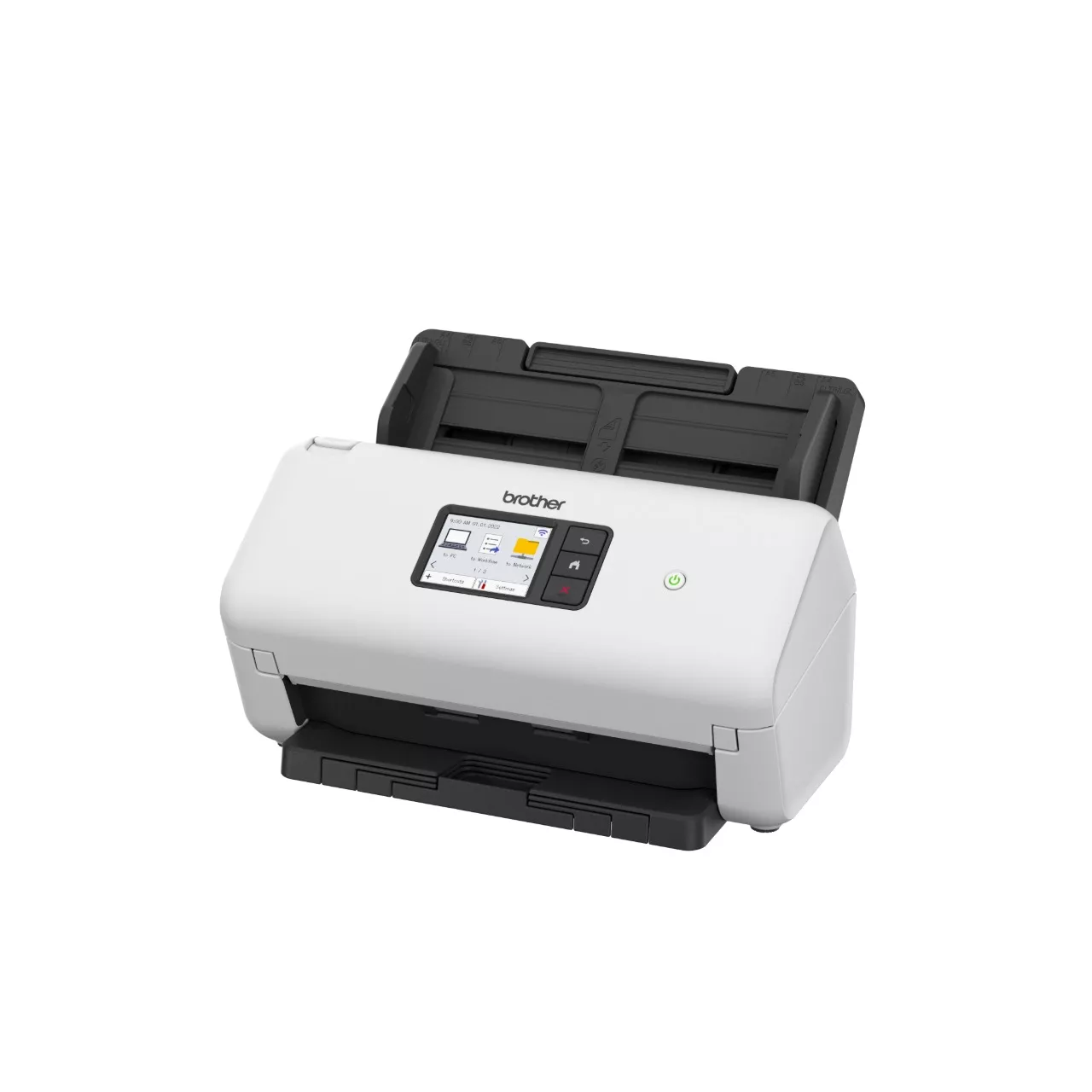

Wired & Wireless Network Document Scanner
IDR 12.190.000
- Automatic Document Feeder (ADF) berkapasitas 60 lembar
- Pemindaian dua sisi hingga 80 ipm
- Fitur Optical Character Recognition (OCR) untuk mengubah dokumen menjadi teks yang dapat diedit
- Optimalkan alur kerja dengan Kofax
- Hubungkan dan pindai melalui USB 3.0, USB Host, dan Wi-Fi
Informasi
Ikhtisar
Spesifikasi
Spesifikasi Dasar
Scanning Speed
40 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Dimensi Produk (Lebar X Kedalaman X Tinggi)
300 mm × 216 mm × 191 mm
Berat
2.7 kg
ADF (Automatic Document Feeder)
Up to 60 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity
512 MB
What's in The Box
Scanner, Quick Setup Guide, User's Guide, Network Guide, CD-ROM's, ADF Document Output Support, AC Adaptor, USB Cable
Connectivity
Connectivity
Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct), Super Speed USB 3.0, IEEE 802.11 g (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
2.8 in. (71.1mm) TFT colour LCD screen
Operation
Power Source
AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 25W
Power Consumption - Ready
Approx. 7.3W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Konsumsi DayaPowerOff
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2016 / Windows Server 2019 / Windows Server 2022
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 10 / Windows 11
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 10 / Windows 11
Tampilkan Lebih Banyak
Tampilkan Kurang
