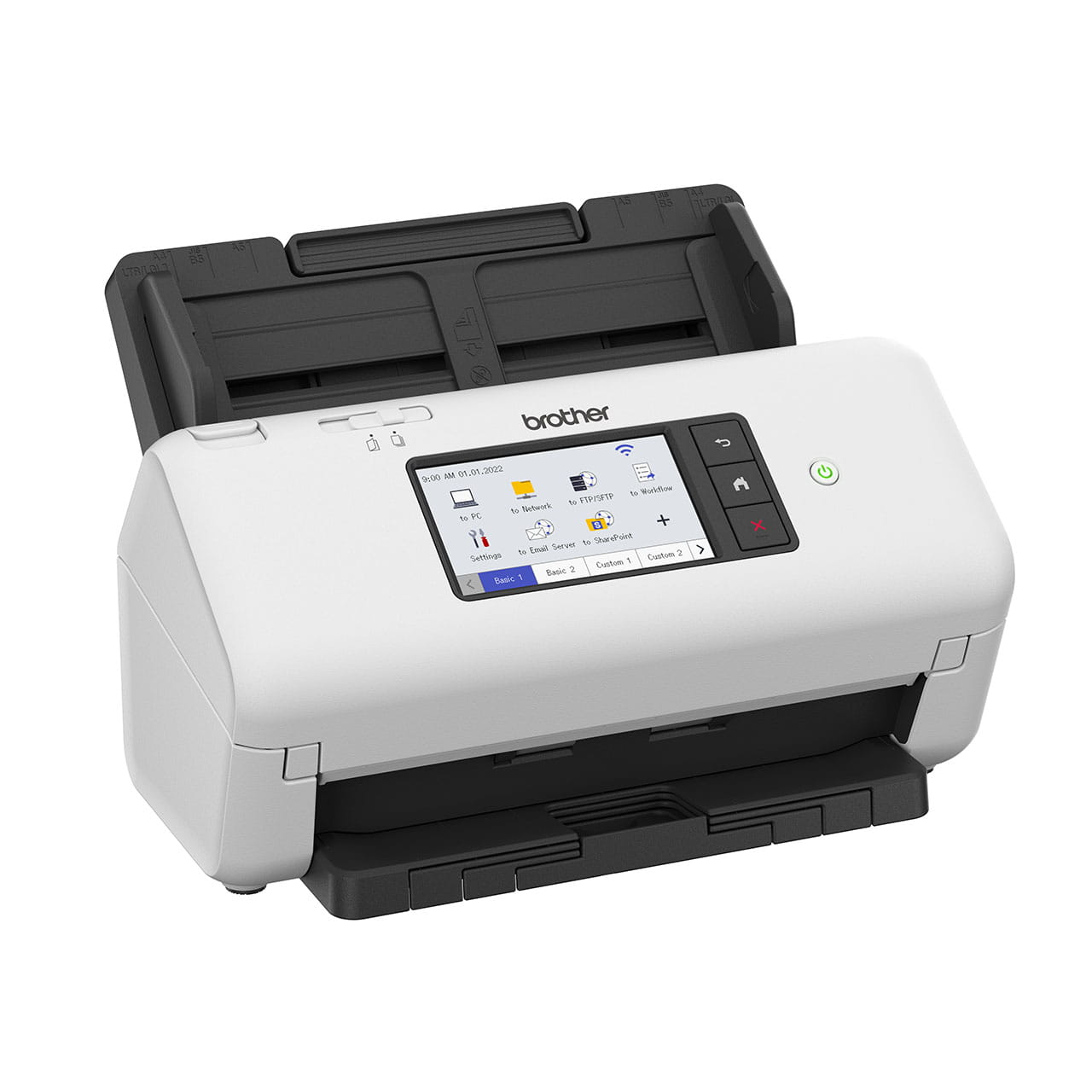

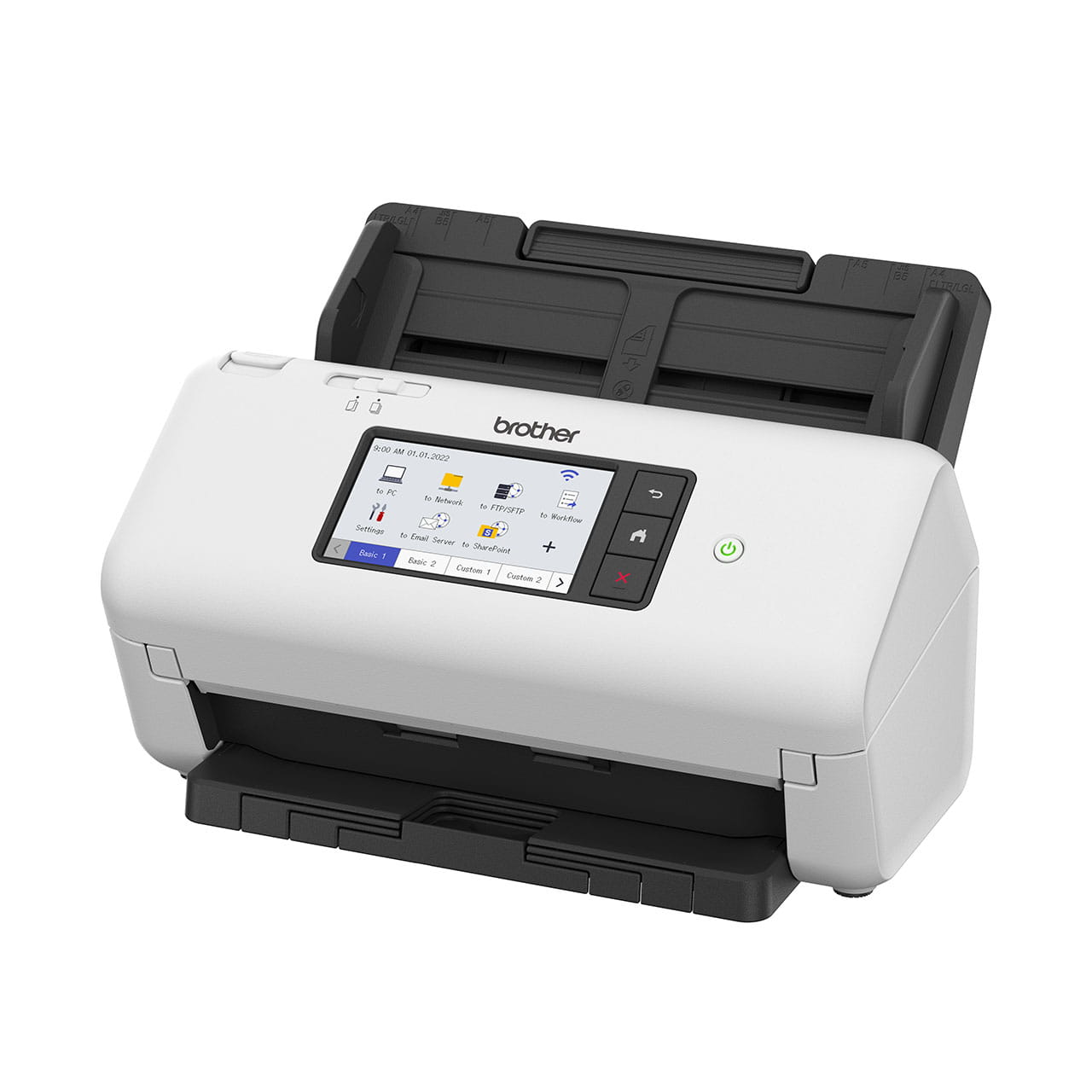

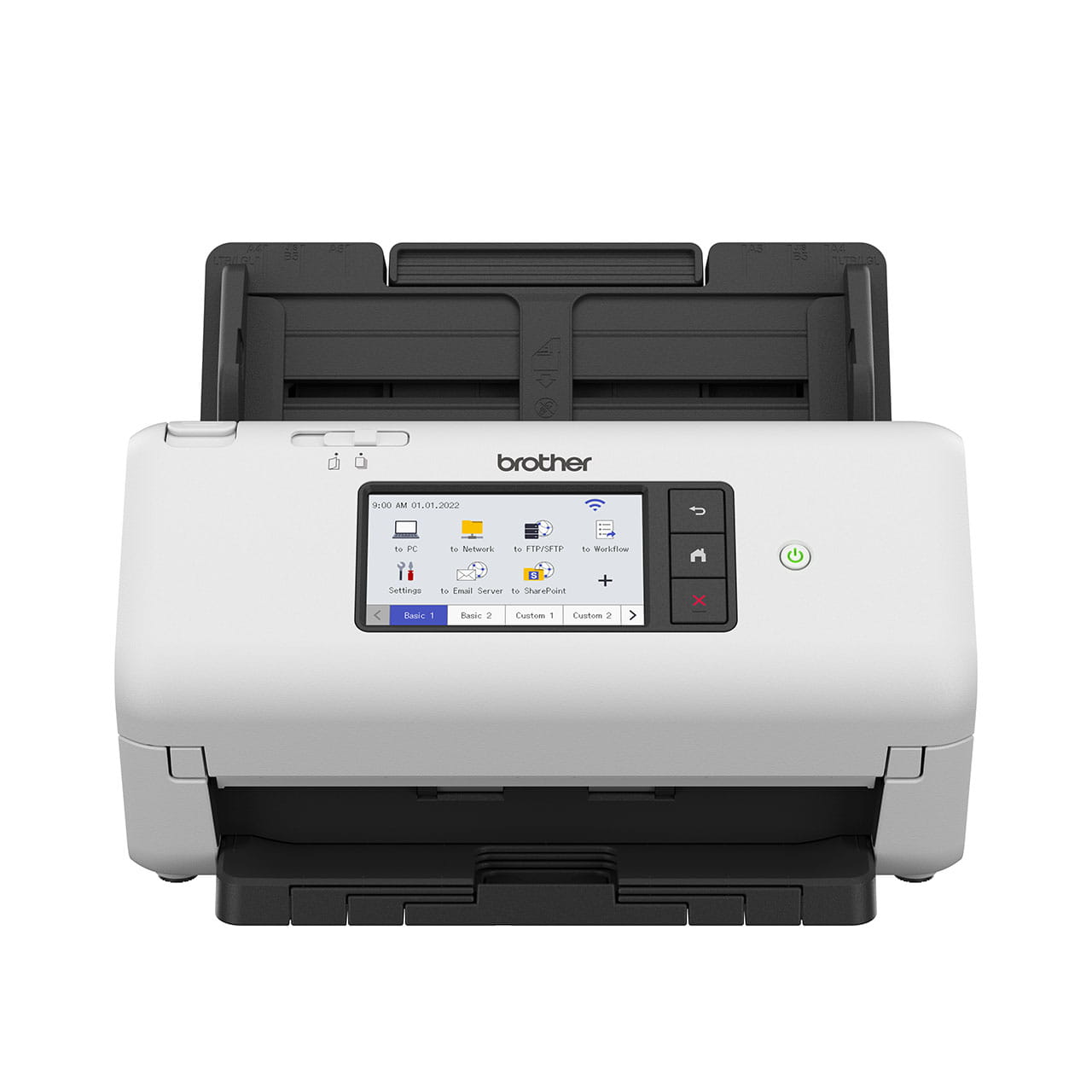

Professional High Speed Desktop Scanner
IDR 15.490.000
- 80-sheet Automatic Document Feeder (ADF)
- 2-sided scanning up to 80ipm
- Optical character recognition (OCR)
- Optimise workflows with Kofax, NewSoft and ScanEssentials software
- Connect and scan using USB 3.0, USB host, Wi-Fi and network
- 10.9cm touchscreen
Informasi
Ikhtisar
Basic Specs
Scanning Speed
40 ppm
Document Size - Multiple Papers - Width
50.8 mm to 215.9 mm
Document Size - Multiple Papers - Length
50.8 mm to 355.6 mm
Document Size - Single Paper - Width
50.8 mm to 215.9 mm
Colour / Black
Yes / Yes
Duplex Scan
Yes
Color Depth - Input
48-bit colour processing
Color Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Scanning Width
Up to 215.9 mm
Grayscale
256 levels
Product Dimensions (Width x Depth x Height)
299.5 mm x 190.5 mm x 215.9 mm
Spesifikasi
Basic Specs
Scanning Speed
40 ppm
Document Size - Multiple Sheets - Width
50.8 mm to 215.9 mm
Document Size - Multiple Sheets - Length
50.8 mm to 355.6 mm
Document Size - Single Sheet - Width
50.8 mm to 215.9 mm
Document Size - Single Sheet - Length
50.8 mm to 355.6 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Up to 600 dpi × 600 dpi
Resolution - Interpolated
Up to 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Up to 215.9 mm
Dimensi Produk (Lebar X Kedalaman X Tinggi)
299.5 mm × 190.5 mm × 215.9 mm
Berat
2.75 kg
ADF (Automatic Document Feeder)
Up to 80 sheets (Paper: 20 lb (80 g/m²) A4/Letter size)
Memory Capacity
512 MB
Connectivity
Connectivity
Super Speed USB 3.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11 b/g/n (Infrastructure Mode), IEEE 802.11 g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
4.3 in. (109.2 mm) TFT colour LCD screen
Operation
Power Source
AC: 100-240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 26W
Power Consumption - Ready
Approx.8.6W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.7W
Konsumsi DayaPowerOff
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows Server 2012 / Windows Server 2012 R2 / Windows Server 2016 / Windows Server 2019
TWAIN Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
WIA Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
ICA Compliant - Macintosh
macOS v10.14.x / 10.15.x / 11.0.x / 11.1.x
ISIS™ Compliant - Windows®
Windows 7 (SP1) / Windows 8.1 / Windows 10
