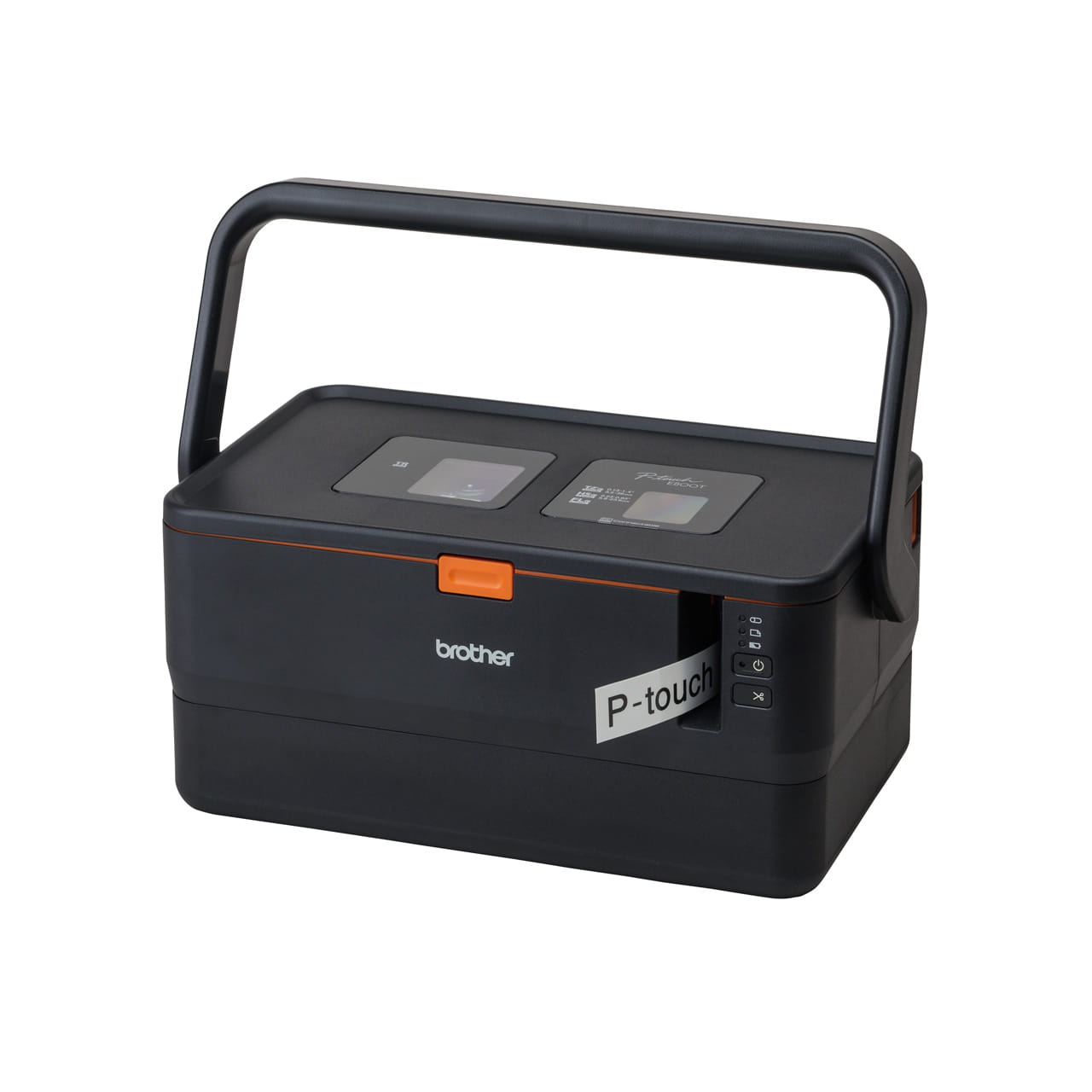

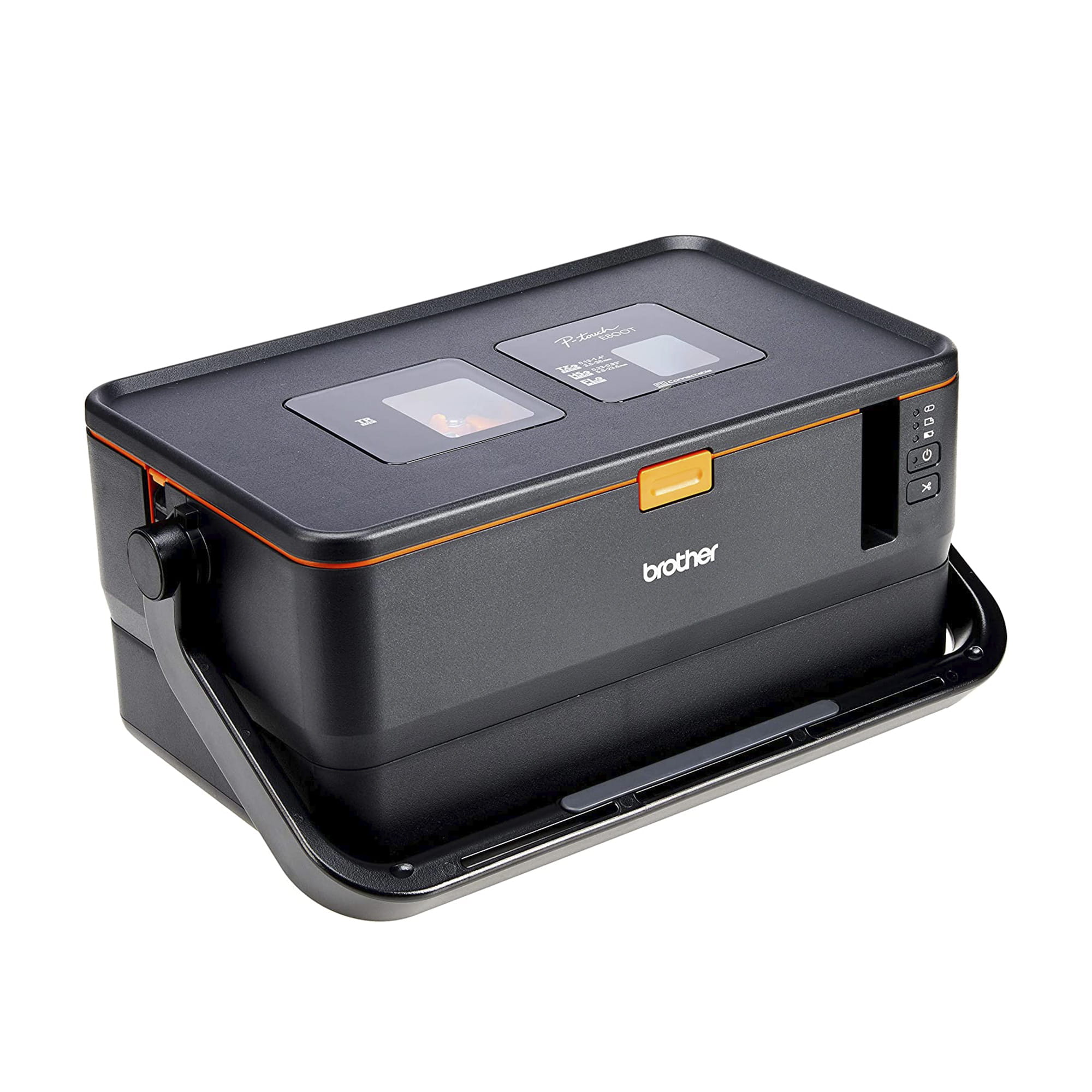

Solusi Printer Label Profesional untuk Kabel, Tube, dan Panel
IDR 8.490.000
- TZe tapes, Ribbon (for tube)
- TZe tapes up to 36 mm
- Tube Print 2,5 mm - 6,5 mm
- USB connectivity
- Without keyboard, PC Connection Only
Belanja Sekarang di Brother Official Store:
Informasi
Ikhtisar
Basic Specs
Media Type
TZe Tape (Laminated), HSe (Heat-shrink Tube)
Available Tape Widths
6mm, 9mm, 12mm, 18mm, 24mm, 36mm
Dimension (Width x Depth x Height)
338 mm x 188 mm x 155 mm
Weight
3.8 kg
Warranty
3 years / 36 months
Print Output
Print Resolution
360 dpi
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
No. of Lines Printable
Tube: 2 lines
Label: 17 lines
Number of Characters
826
Number of Symbols
465
Bar Code
21 barcode protocols on P-touch Editor 5.2
Functions
Cutter
Auto and half cutter
Copy Printing
Yes
Mirror Printing
Yes
Memory
File Storage
99 files
Memory Buffer Size
up to 40,000 chrs
Power Supply
Power Supply
Adapter AC adapter (AD9100ESA): 24 V Battery (Optional)
Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-off
Li-ion Battery (PA-BT-4000LI): 30 min
AC Adaptor
AD9100ESA
Connectivity
USB
Version 2.0 Full Speed
Spesifikasi
Bacic Specs
Keyboard
QWERTY
Media Type
TZe Tape (Laminated), HSe (Heat-shrink Tube)
Available Tape Widths
3.5, 6, 9, 12, 18, 24, 36mm
Dimensi Produk (Lebar X Kedalaman X Tinggi)
338 mm × 188 mm × 155 mm
Berat
3.8 kg
Print Speed
Tube printing: 40mm/sec
Label printing: 60mm/sec
Garansi
3 years / 36 months
Resolution
360 dpi
No. Of Printable Lines
Tube: 2 lines
Label: 17 lines
Number of Characters
826
Number of Symbols
465
Barcode
21 barcode protocols on P-touch Editor 5.1
Connectivity
Connectivity
USB 2.0 Full Speed, IEEE 802.11b/g/n (Wireless LAN - Infrastructure Mode), IEEE 802.11b (Wireless LAN - Ad-hoc Mode), IEEE 802.11n (Wireless Direct), WPS (Wi-Fi Protected Setup) 2.0
Media
Maximum Tape Width
Up to 36 mm
Functions
Cutter
Auto and half cutter
Mirror Printing
Yes
Memory
File Storage
99 files
Memory Buffer Size
up to 40,000 chrs
Power
Power Source
Adapter AC adapter (AD9100ESA): 24 V Battery (Optional)
Li-ion Battery (PA-BT-4000LI): 14.4 V
Auto Power-Off
Li-ion Battery (PA-BT-4000LI): 30 min
