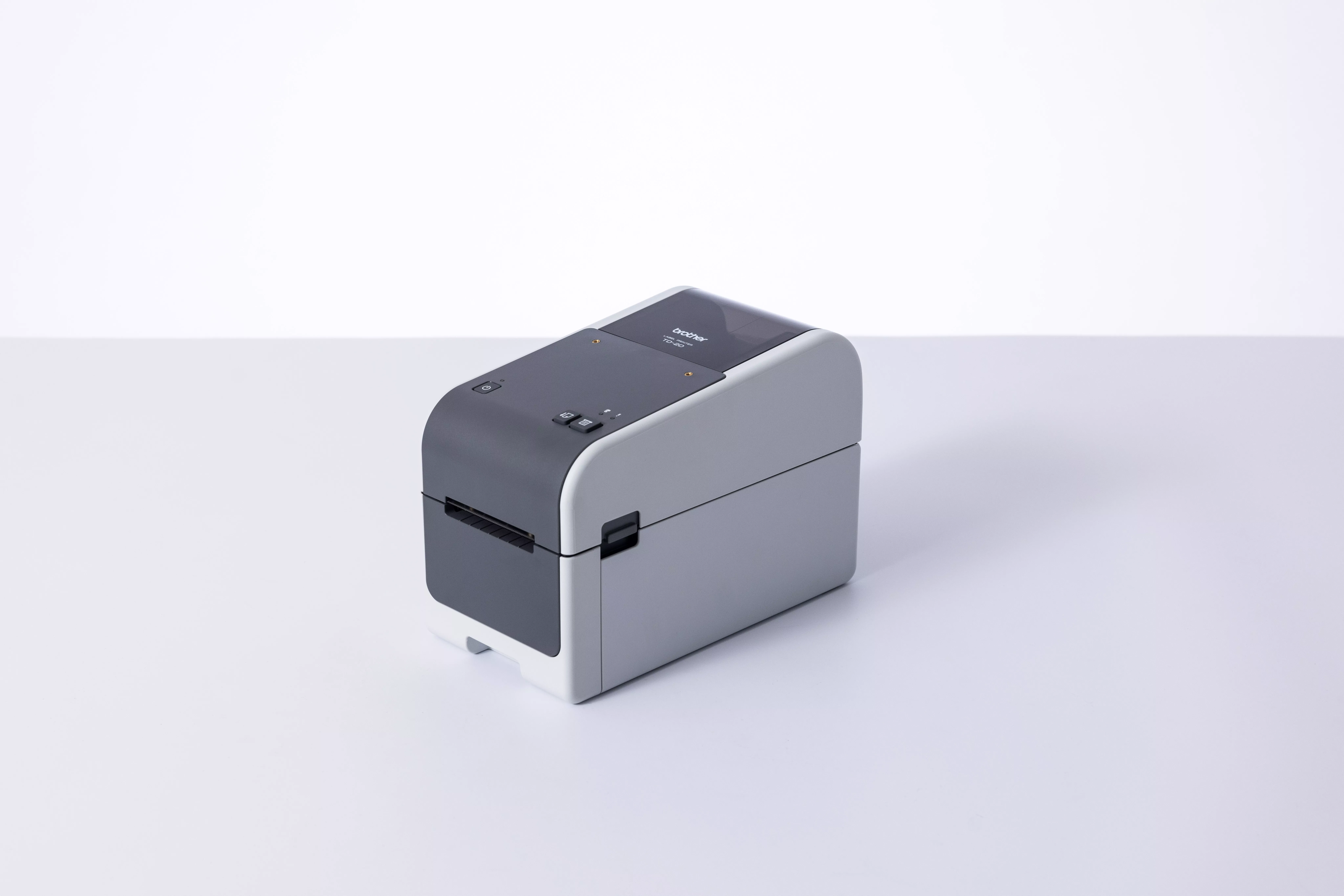

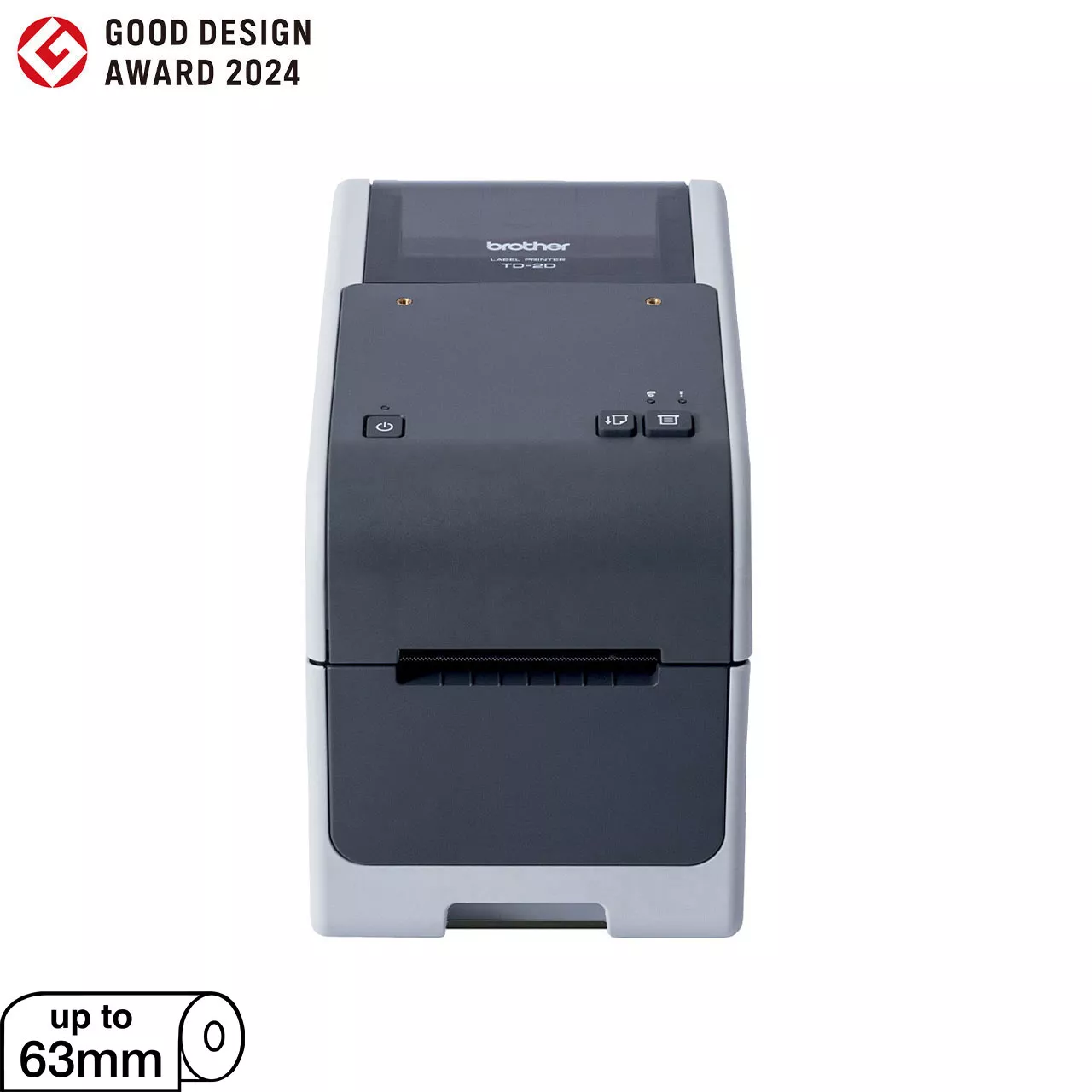

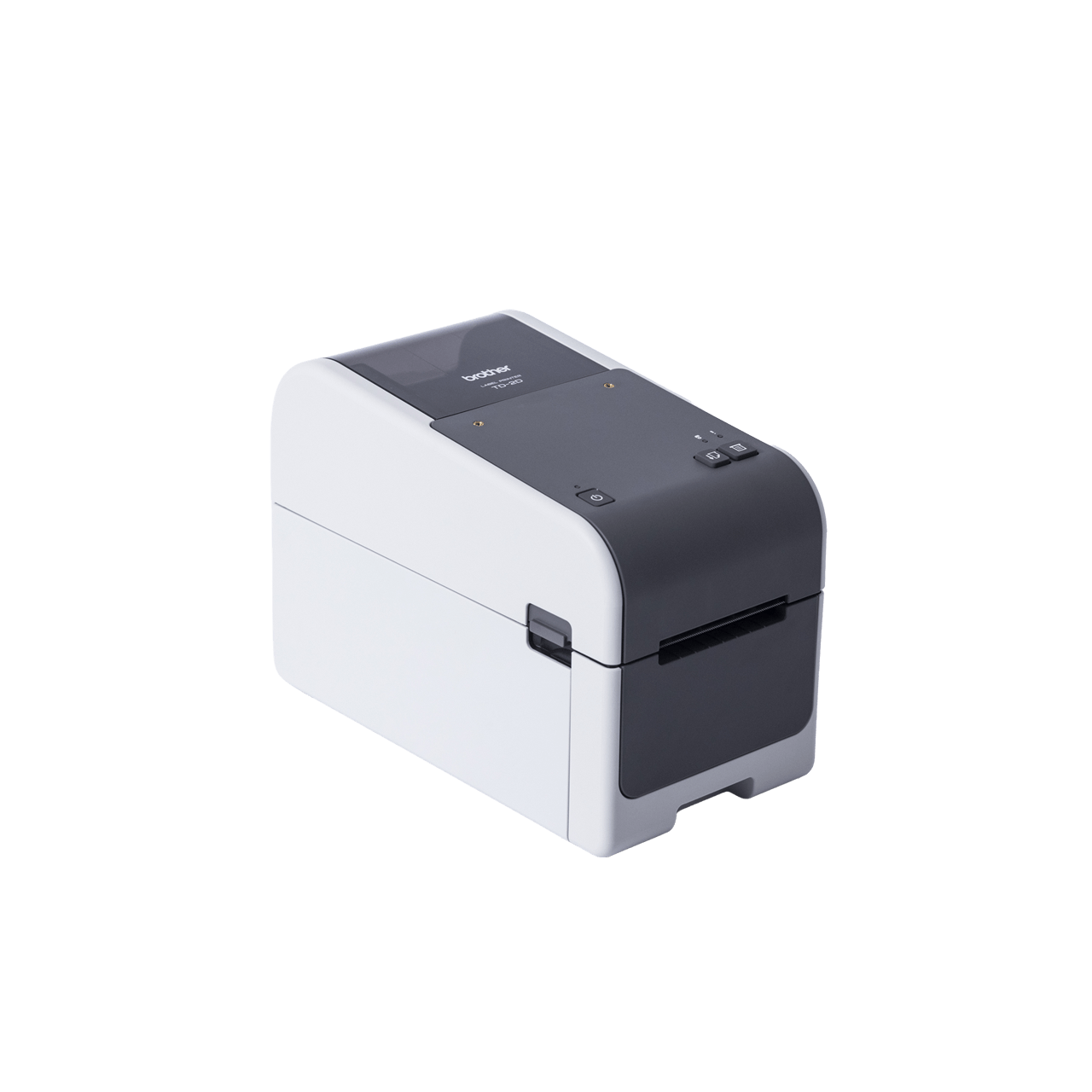

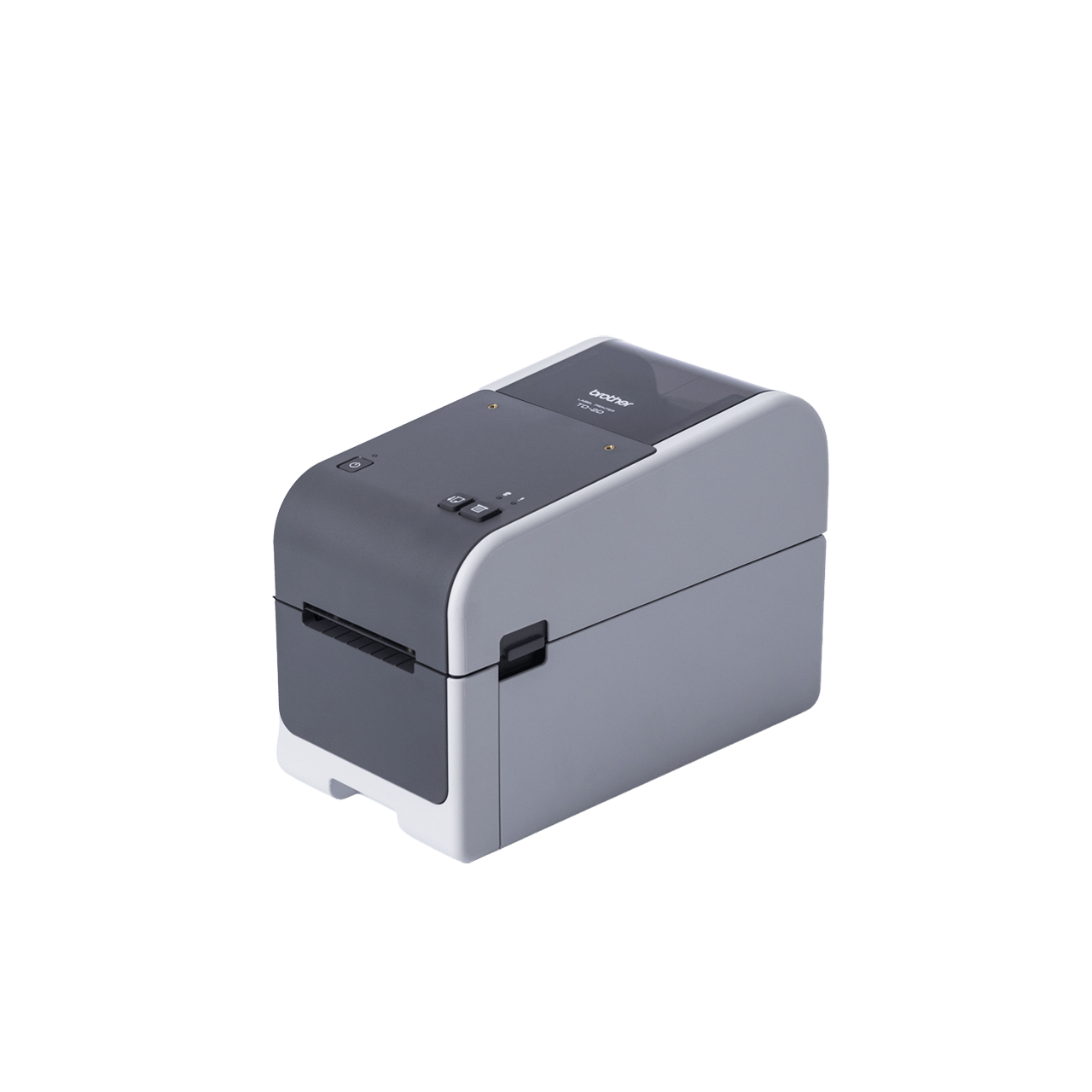

Professional Label Printer for Food, Healthcare, Retail, Warehousing and Logistics Industries
IDR 4.290.000
- Print up to 63mm RD rolls width
- USB and Serial Connection
- Tear Bar
- Print Labels, Receipts, Tags and Wristbands
- Compatible with customised media
- Optional accessories available
Informasi
Ikhtisar

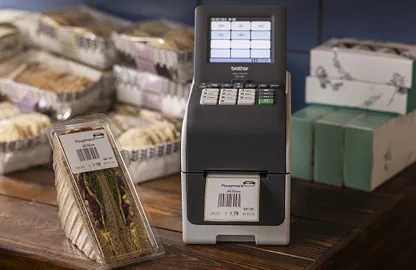

Food Industry
Food safety is paramount, especially in fast-paced environments where mistakes can lead to serious consequences. With food scares that have heightened consumer awareness, clear and accurate food labels become essential.
TD-2300 series label printers can ensure clear communication by producing allergen information, expiry dates, and barcodes on-demand to reduce errors and optimise workflows with easy operation.

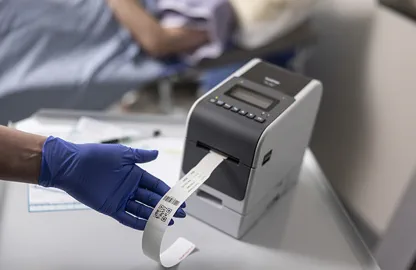

Healthcare industry
With strict regulations on the tracking of patient specimens and other items within the healthcare industry, clear and high-quality labeling is essential to maintain safety and traceability.
TD-2300 series label printers can implement patient identification, which helps to improve efficiency and reduce human error.

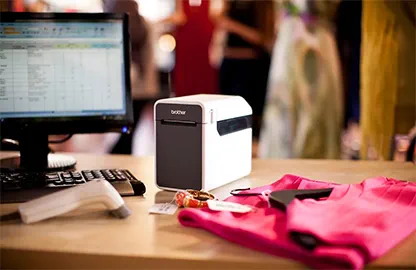

Retail Industry
Easy-to-read labels are essential for consumers to make informed decisions before a purchase.
TD-2300 series high-resolution label printers can produce high-quality and professional-looking labels.
These labels feature sharp text, logos, and high-contrast barcodes, enabling faultless scanning at checkout.
Warehousing and Logistics Industry
Efficient warehousing operations and worker productivity are crucial to the success of many organisations.
TD-2300 series label printers can address this need by printing common and custom label sizes. This versatility allows for numerous applications within the warehouse, streamlining processes and enhancing worker efficiency.

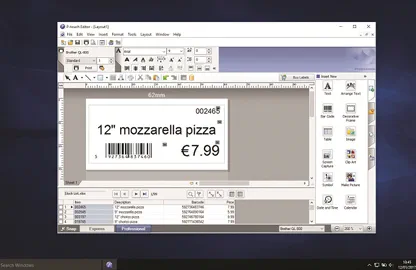

P-touch Editor software
Brother's P-touch Editor is a complimentary label design software with templates, symbols, clipart, text designs, and barcodes. Graphics can be imported to create logos and labels that can be printed from an imported database.
This comprehensive and versatile label design software can provide a truly connected solution to accommodate any label application.

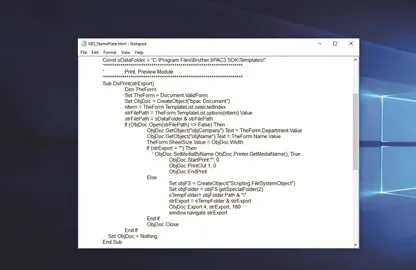

Seamless integration
Developed for advanced users, system integrators can leverage on Brother’s Software Development Kits (SDK) for Windows® operating system and print command languages such as ZPL II emulation, Raster, and CPCL emulation for seamless integration into any legacy system for label printing.
For more information, please visit: https://www.brother.co.jp/eng/dev/bpac/index.aspx
Spesifikasi
Basic Specs
Keyboard
N/A
Display Type
3 LED, 3 buttons (Power/ Feed / Print)
Media Type
Wristbands, Continuous, Die Cut, Fan Fold, Perforated,Tag
Available Tape Widths
15 mm ~ 63 mm (0.59" to 2.48" )
Dimensi Produk (Lebar X Kedalaman X Tinggi)
119 mm × 224 mm × 158 mm
Berat
1.46 kg
Print Speed
Up to 152.4 mm/sec (6 ips)
Resolution
203 dpi
Barcode
Linear:
CODE 39, ITF (I-2/5), EAN-8 (JAN8), EAN-13 (JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128 (UCC/EAN 128), POSTNET, GS1 Databar (RSS14、RSS14 Stacked、RSS14 Truncation、RSS14 Stacked Omnidirection), GS1 Databar (RSS Limited), GS1 Databar (RSS Expanded、RSS Expanded Stacked)
2-dimensional:
QR Code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Truncate, MicroPDF417), Data Matrix(ECC200 Square, ECC200 Rectangular), Aztec
Connectivity
Connectivity
USB, USB
Media
Maximum Roll Width
Up to 63 mm (2.48")
Functions
Cutter
N/A
Memory
File Storage
Up to 255 templates
Memory Buffer Size
32MB
Power
Power Source
Standard AC adapter (100 - 240 V 50/60Hz)
Auto Power-Off
Yes
Spesifikasi OS yang didukung
Supported OS
Windows 10 (x86,x64), Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode), EPL2 emulation, DPL emulation
